Jackson Grills 3-Burner Supreme Built-In Gas Grill

The Jackson Grills 3-Burner Supreme Built-In Gas Grill turns your outdoor kitchen into the place guests never want to leave.

When your grill is this capable and this well-built, hosting stops feeling like work. You stay outside, stay in control, and let the food do the talking.

Why You'll Love The Jackson Grills 3-Burner Supreme Built-In Gas Grill

• 304 stainless steel used absolutely everywhere — including fasteners, so that your investment holds up against the Canadian climate season after season, and your outdoor kitchen still looks intentional years down the line.

• 512 sq. in. of total grilling surface (370 sq. in. primary, 142 sq. in. secondary), so that you can run mains and sides simultaneously, and a table of 10 to 15 never has to wait on the next round.

• Flush-mounted true infrared rotisserie burner reaching 1,000°F, included with a complete 100% stainless steel rotisserie kit, so that you can serve centrepiece rotisserie roasts without a separate appliance, and your spread feels genuinely restaurant-calibre.

• Flame Thrower Ignition System designed to reach searing temperatures of 500°F in 10 minutes, so that you spend less time waiting for heat and more time with your guests, and every sear lands exactly as planned.


Your life, with the Jackson Grills 3-Burner Supreme Built-In Gas Grill

It's a Saturday evening and the backyard is full. The rotisserie is turning, the primary cooking surface is holding steaks and vegetables at a proper sear, and the warming rack is keeping the first round ready. You haven't gone inside once.

That's the point of a grill built at this level. The infrared rotisserie, the generous surface, and the rapid heat-up combine so the cooking side of hosting runs itself. You stay in the conversation, the flow stays smooth, and nothing lands cold on the table.

The Jackson Grills 3-Burner Supreme Built-In Gas Grill in a nutshell:

1. All-grade 304 stainless steel with welded seams and polished accents, so that every surface resists the elements and cleans up without drama, and the built-in looks cohesive and premium from day one.
2. 512 sq. in. of grilling area across a primary zone (370 sq. in.) and secondary zone (142 sq. in.), so that you manage multiple foods at different temperatures at once, and large-group service stays organised and on time.
3. Flush-mounted 15,000 BTU infrared rotisserie burner with battery-operated electronic ignition and a maximum rotisserie motor load of 12 lbs (5.5 kg), so that you have a defined capacity to work with when planning your cook, and rotisserie nights become a repeatable signature rather than a guessing game.
4. Three main burners at 10,500 BTU each (31,500 BTU combined) plus pinned burners for easy removal and a full-sized welded grease tray, so that maintenance stays quick between sessions, and the grill performs consistently every time you light it.

Jackson Grills 3-Burner Supreme Built-In Gas Grill specifications

Burners and power

• Main Burners: 3 (10,500 BTU's each)
• Rotisserie Electronic Ignition Burner (Battery Operated): 15,000 BTU
• Side Burner: Optional (10,000 BTU)
• Searing Side Burner: Optional (10,700 BTU)
• Total BTU: 46,500

Cooking area

• Total Cooking Area: 512 sq. in. (370 sq. in. primary & 142 sq. in. secondary)

Ignition

• Ignition System: Flame Thrower Ignition System
• Rotisserie Burner: Battery-operated electronic ignition (AAA battery included)

Materials and surfaces

• 304 Stainless Steel construction — including fasteners and castors
• Stainless Steel Burners
• Stainless Steel Flame Diffusers
• Stainless Steel VGS 9mm Cook Grates (ideal for heat retention)
• One-piece Welded Control Panel
• Round Double Wall Roasting Hood, Seam Welded With Polished Accents

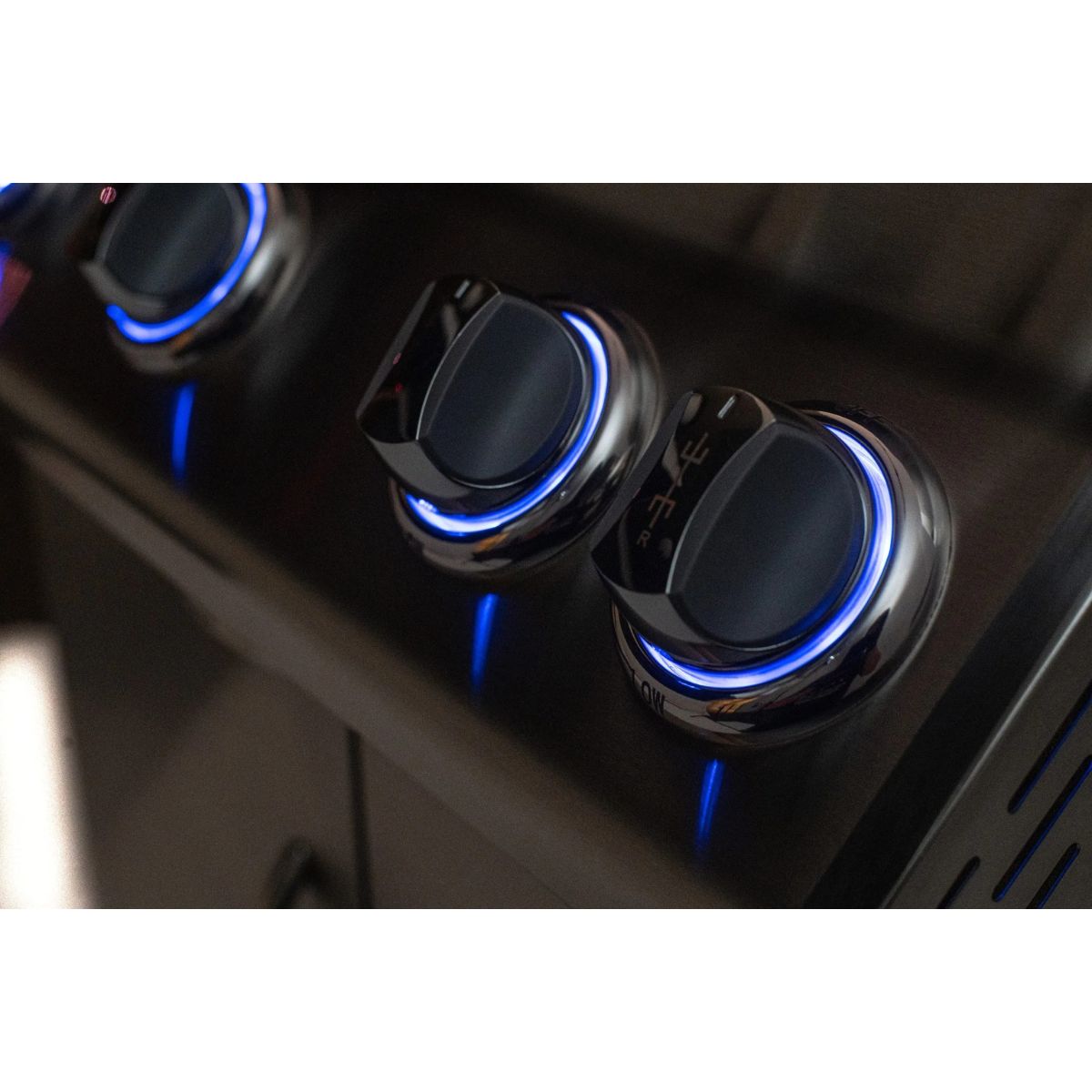

• Blue LED Back-lit Knob/Bezel Combination

Fuel type

• Available in Liquid Propane (LP) or Natural Gas (NG) configurations
• LP operating pressure: 11" WC
• NG operating pressure: 4" WC
• Max LP Cylinder Size: 20 lbs (9 kg)
• LP Cylinder Dimensions (approx): 12 inches (30.5 cm) x 18 inches (45.7 cm)
• Gas Conversion Kits (LP/NG): Optional

Cutout dimensions — non-combustible cabinet (JSS550BI)

• Width (A): 24 ¾" (62.87 cm)
• Depth (B): 17" (43.18 cm)
• Height (C): 9 ¾" (24.77 cm)
• D (min. distance to rear vertical wall for lid opening): 5 ½"
• E (min. clearance to rear adjacent vertical combustible): 12"
• F (min. clearance to side adjacent vertical combustible): 15 ½"

Cutout dimensions — combustible cabinet with Zero Clearance Kit (ZCAN550JSS with JSS550BI)

• Width (A): 26 7/8" (68.26 cm)
• Depth (B): 18 ¾" (47.62 cm)
• Height (C): 10 5/8" (26.98 cm)
• D: 5 ½"
• E: 12"
• F: 15 ½"

Clearances

• Minimum clearance to rear vertical combustible: 12 inches / 30.48 cm
• Minimum clearance to side adjacent vertical combustible: 15.5 inches / 39.37 cm
• Minimum overhead clearance above cooking surface (if under combustible overhead): 36 inches — requires a certified ventilating hood wider than the appliance

Rotisserie

• Flush Mounted Full Sized True Infrared 1,000°F Rotisserie Burner
• 100% Stainless Steel Rotisserie Kit included — motor has a light
• Maximum rotisserie motor load capacity: 12 lbs (5.5 kg)

Included components (JSS550BI)

• Main Firebox
• AAA Battery for Ignition
• 3 x Flame Diffusers
• 3 x Grease Tray Shields
• 2 x Cook Grids
• Warming Rack
• Adapter for Lights
• Complete Rotisserie Kit

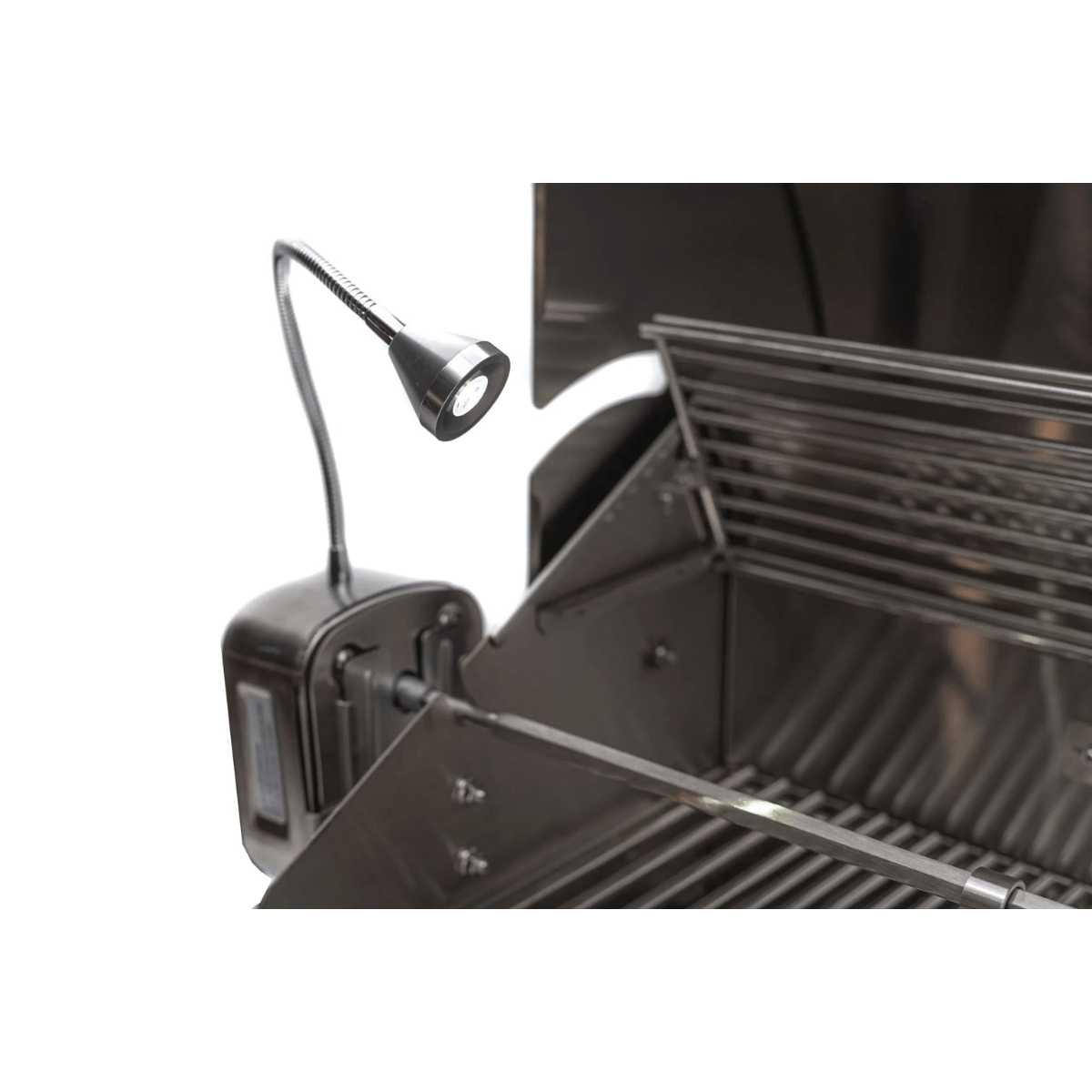

• LED Grill Light
• HD Barbeque Cover
• Owner's Manual
• Spare Set of Rubber Lid Bumpers
• 4" Natural Gas Regulator (Natural Gas models only)

Optional accessories

• Smoker Box (optional)
• Side Burner — JGSB (sold separately)
• Island Grillstone™ — Square or Round (optional)

Electrical

• Requires GFI protected circuit
• Extension cords must be 3-prong, rated for power, and approved for outdoor use (W-A marking)

Assembly

• Approximately 30 minutes

Installation

• For outdoor use only — must be built into an outdoor cabinet
• Not for commercial use
• Requires a certified gas fitter for installation of fuel lines, quick connect boxes, and conversion kits
• Do not move while lit

Performance

• Designed to achieve searing temperatures of 500°F in 10 minutes
• Infrared rotisserie burner reaches 1,000°F

Warranty

• Lifetime: Main Outer Hood, Handle, Outer Pedestal System, Inner Hood (repair/replace at Jackson Grills' option)
• 10 Years (free repair/replace) + 5 Years (50% current retail price): Burners, Cooking Grates, Rotisserie Burner, Warming Shelf, Firebox
• First 5 Years (free repair/replace) + Lifetime (50% current retail price): Flame Diffusers, Crosslighters
• 2 Years (free repair/replace): Natural Gas Regulator, Thermometer, Gas valves, Knobs & fasteners, Igniter and electrode, Accessory parts, Lights, Rotisserie Kit, Rotisserie Motor
• Outer Grill*: 10 years 100%
• Non-transferable. Original purchaser only. Valid only if installed by a licensed technician using genuine Jackson parts according to the manual.

Let the experts help you find your perfect Outdoor Living Setup

Drop us an email at: hello@patiofolks.ca

Call us today at: +1 888 230 2103

Jackson Grills 3-Burner Supreme Built-In Gas Grill documents and downloads

Jackson Grills 3-Burner Supreme Built-In Gas Grill product manual

Safety disclaimer: This page is general information and is not official advice. Always follow the manufacturer's instructions and use appropriate care during installation and operation. Installation and use are at your own risk. If you are unsure about gas, electrical, water, clearances, or safe operation, consult a qualified professional.
