Halo Elite4B Griddle

The Halo Elite Griddle that turns your backyard into the place everyone wants to be on a Saturday night

Eight independently controlled zones, a stainless hinged lid, and a cleanup system that actually works.  This is the griddle that keeps you outside with your guests, not scrambling to manage the cook.

Why You'll Love The Halo Elite Griddle

• Eight-zone, four-burner heating across 720 sq. in., so that you can sear, sauté, and warm simultaneously without hot spots, and every dish lands at the table at the right temperature.

• A stainless hinged lid designed to be part of the cook, so that you can steam, melt, or retain heat on demand, and wind never disrupts your temperature or your timing.

• Adjustable casters and a built-in bubble level, so that setup is steady on any patio, deck, or driveway surface, and you can focus on the food instead of wrestling with an uneven rig.

• A patent-pending utensil squeegee and extra-large grease trap, so that cleanup happens as you cook rather than after your guests leave, and the whole experience feels effortless from start to finish.


Your life, with the Halo Elite Griddle

Picture a Saturday evening with twelve people in the backyard. One side of the griddle is running hot for smash burgers, another zone is holding tortillas warm, and you haven't left the patio once. The stainless lid keeps wind out of the equation, the bubble level has the surface dialled in, and the adjustable casters mean you placed the griddle exactly where the flow of the evening needed it.

That is the kind of control that keeps hosting smooth. No cold spots chasing you into the kitchen, no chaos around the cook station, and no mountain of cleanup waiting after the last guest heads home. You stay in the moment, and the griddle handles the rest.

The Halo Elite Griddle in a nutshell:

1. 720 sq. in. inset griddle plate crafted from hot-rolled steel, so that the entire wall-to-wall surface heats evenly and retains heat consistently, and you can feed a crowd without rotating food between zones.
2. 300°F to 750°F temperature range with a 10-minute warm-up time, so that you move from cold to cooking quickly and dial in any technique from gentle warming to a hard sear, and the evening never stalls waiting on the griddle.
3. Propane-ready with 20 lb tank compatibility and an adjustable regulator from 9.5" to 11" WC, so that you have more control over flame intensity, and a natural gas conversion kit (model HZ-3001-B, sold separately) means you can eliminate tank refills entirely if your setup allows.
4. Swing-away warming rack with 205.5 sq. in. of additional space, so that finished food stays hot and ready without cluttering the main cooking surface, and taller items or high-volume cooks have full clearance when the rack swings away or removes entirely.

Halo Elite Griddle specifications

Model

• Model/SKU: HZ-1001-XNA

Burner and heat

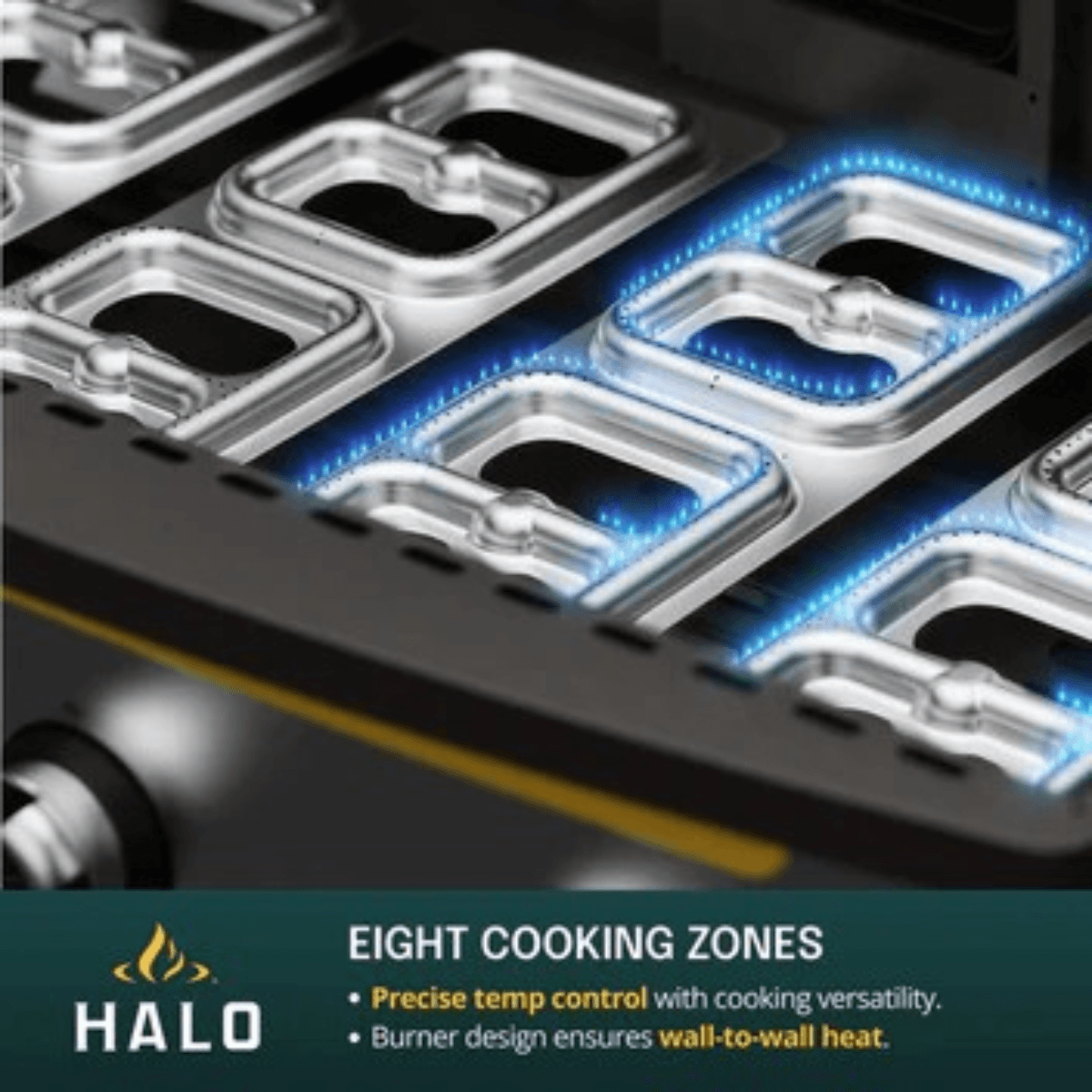

• Burner Technology: Patent-pending four burner, eight zone system delivers precise temperature control across the entire griddle surface.
• BTU Output: 48,000 (12,000 per burner using propane)
• Temperature Range: 300°- 750 °F, for everything from warming to searing heat.
• Time to Cook: From cold to cooking temperature in about 10 minutes.
• Flame Control: An adjustable gas regulator from 9.5" to 11" WC (approximately 0.34–0.40 psi) for more control of flame intensity and temperature.

Cooking surface

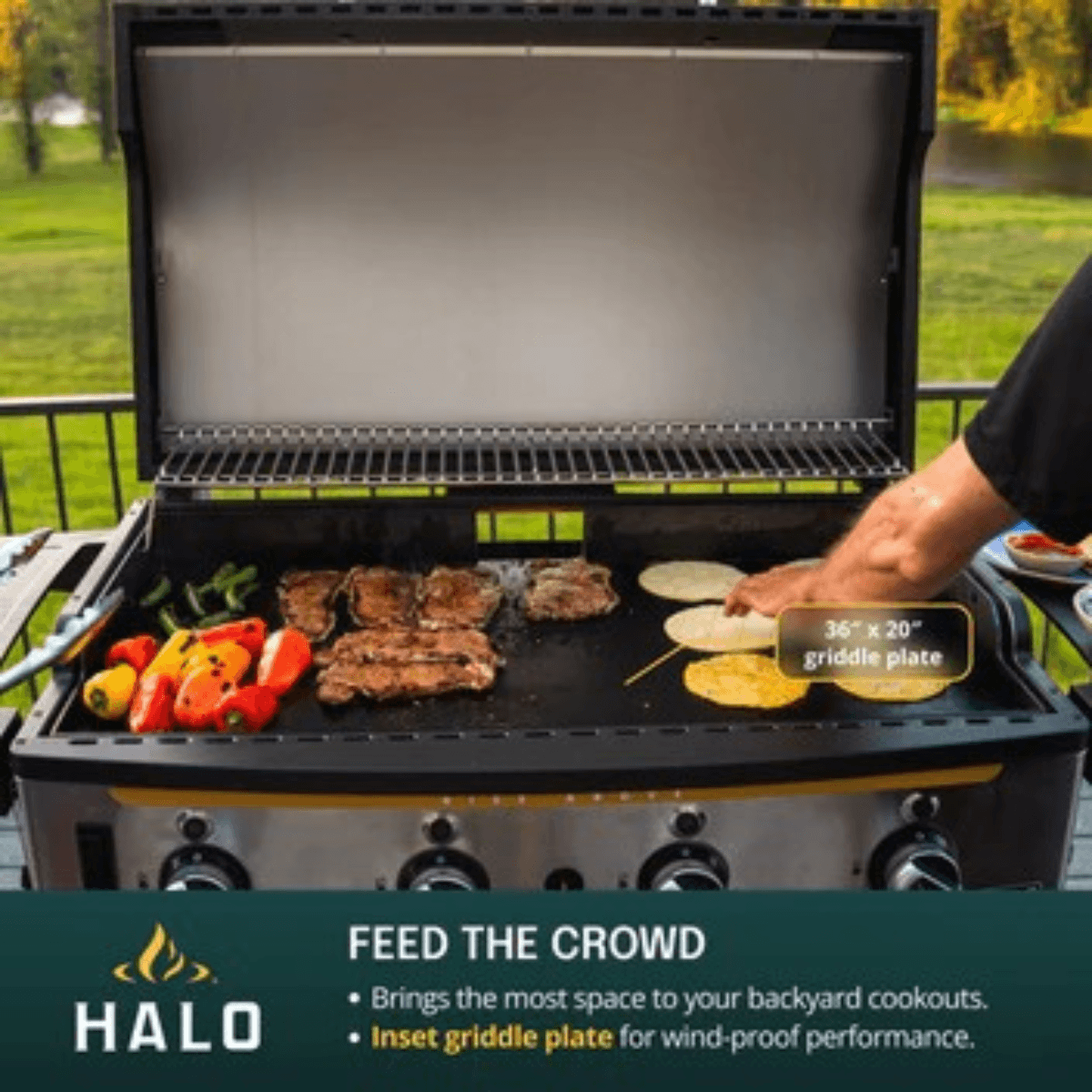

• Cooking Surface: 720 sq. in. (36″ W x 20″ D) inset griddle plate shields food from the wind for consistent heat.
• Cooking Surface Material: Professional-grade griddle plate crafted from hot-rolled steel for durability and superior heat retention.
• Cooking Height: 35.50″

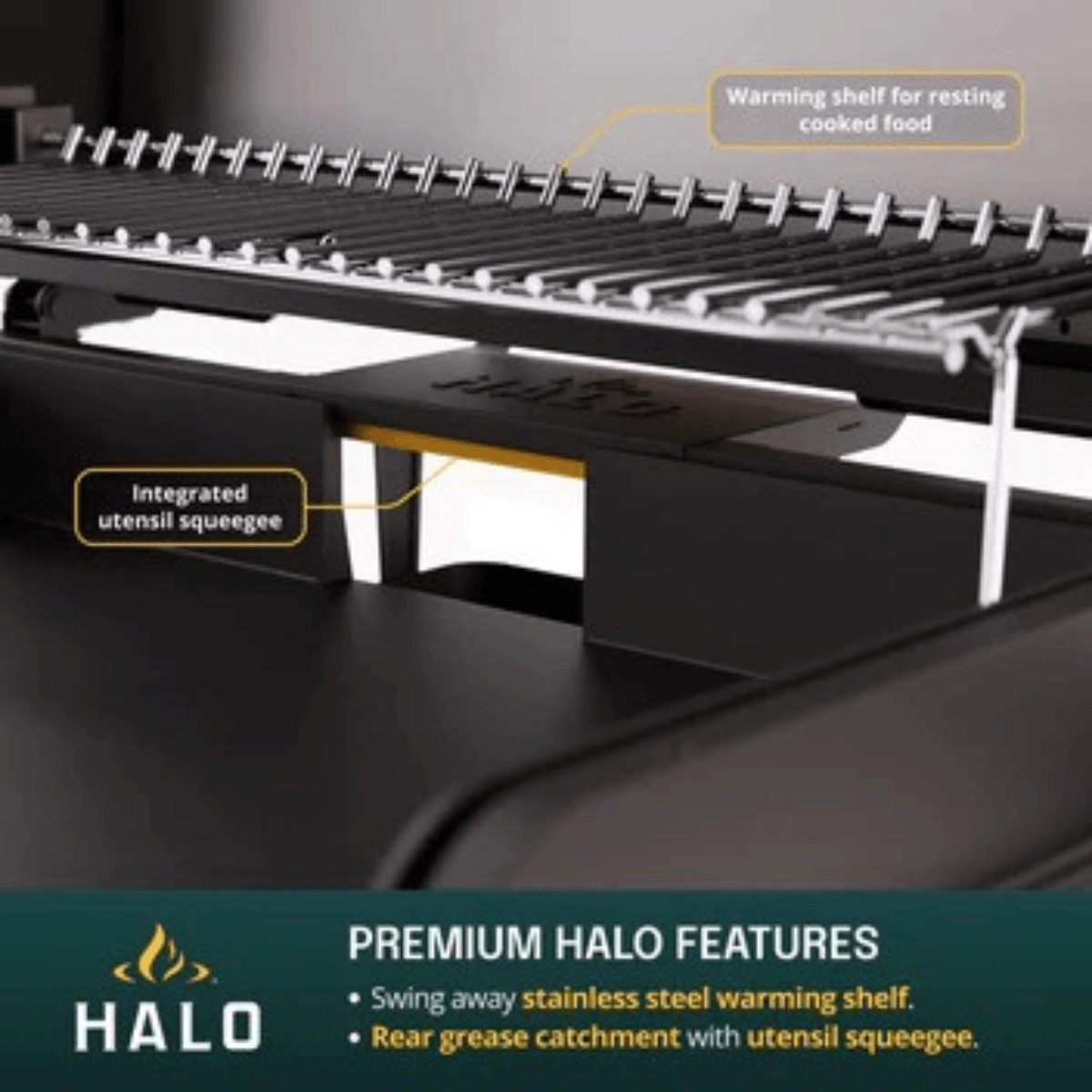

• Swing Away Warming Rack: 205.5 in2 of additional space for keeping foods warm.

Body construction

• Body Construction: Heavy-duty body construction using a combination of cold-rolled, powder-coated steel and 430 stainless steel.

Mobility and levelling

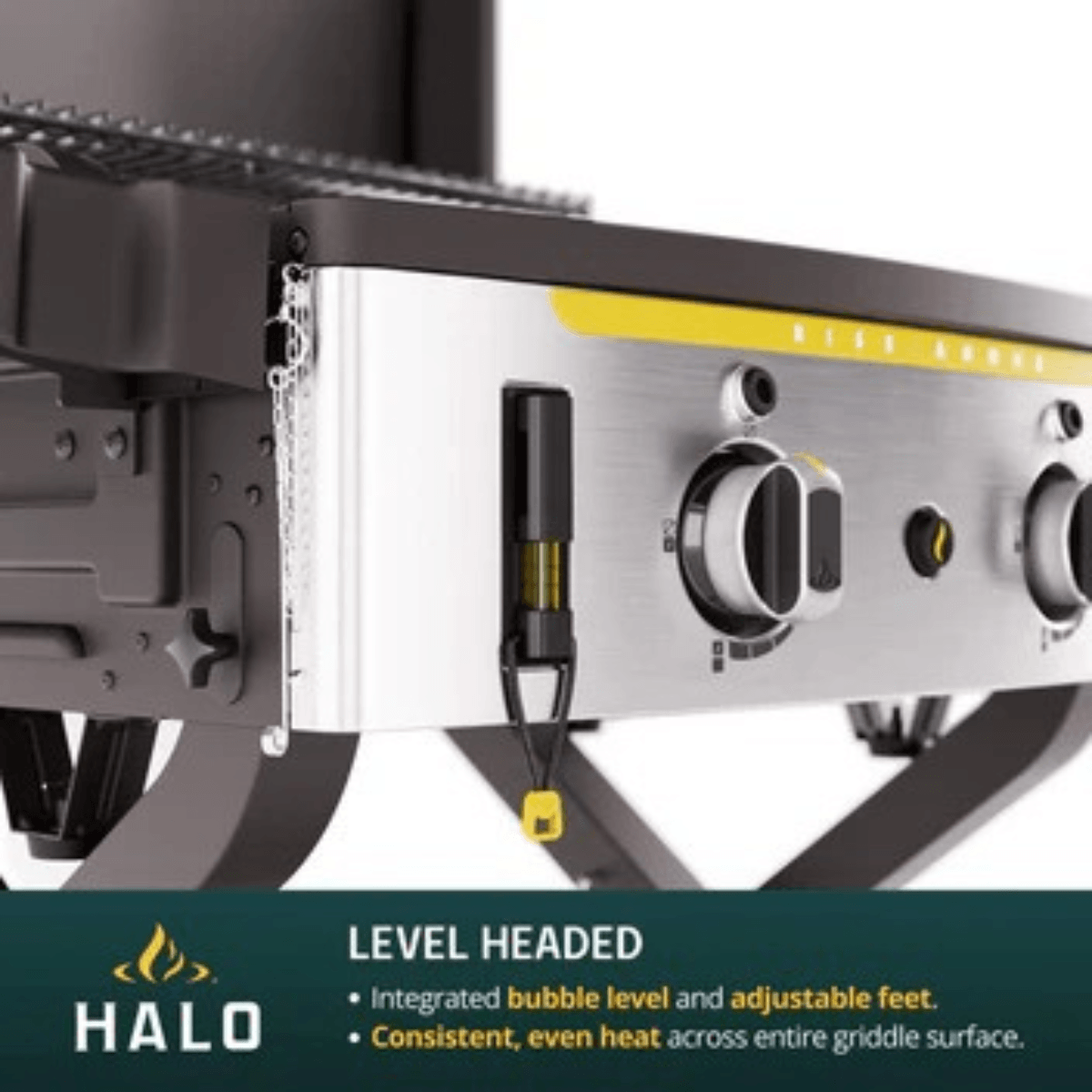

• Griddle Leveling: Built-in bubble leveler and adjustable casters ensure a perfectly even cooking surface anywhere.

Fuel

• Fuel Options: Propane-ready - compatible with 20 lb tanks. Natural gas convertible with optional conversion kit (model #HZ-3001-B, sold separately).

Additional features

• Additional Features: Patent-pending utensil squeegee makes cleanup fast and effortless.

Dimensions and weight

• Product Dimensions: 72.05" W × 31.50" D × 43.11" H
• Outer Box Dimensions: 42.51″ W x 29.37″ D x 22.91″ H
• Product Weight: 169.75 lbs
• Shipping Weight: 201.83 lbs

Warranty

• Cooking firebox and all components: 5-year limited warranty against defects in workmanship and materials.
• Burners and griddle plate: 5 years.
• Electrical components and control knob: 1 year.
• Paint: 1 year.
• Valid for original owner only. Applicable in the United States and Canada. Proof of purchase required.
